vpmg.h File Reference
Contains declarations for class Vpmg. More...
#include "maloc/maloc.h"#include "apbs/vhal.h"#include "apbs/vpmgp.h"#include "apbs/vacc.h"#include "apbs/vcap.h"#include "apbs/vpbe.h"#include "apbs/vgrid.h"#include "apbs/mgparm.h"#include "apbs/pbeparm.h"

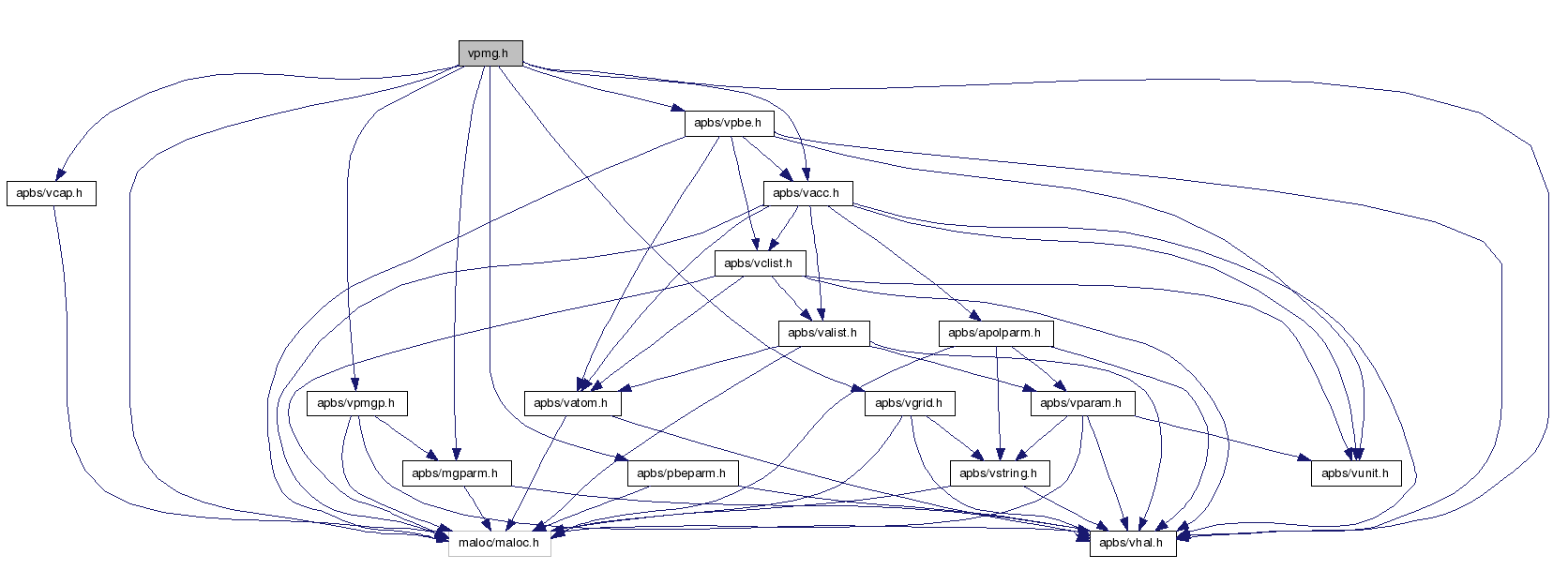

Include dependency graph for vpmg.h:

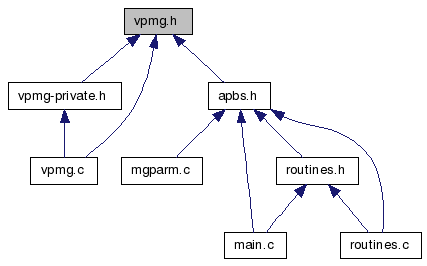

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | sVpmg |
| Contains public data members for Vpmg class/module. More... | |
Typedefs | |
| typedef struct sVpmg | Vpmg |
| Declaration of the Vpmg class as the Vpmg structure. | |
Functions | |
| unsigned long int | Vpmg_memChk (Vpmg *thee) |
| Return the memory used by this structure (and its contents) in bytes. | |
| Vpmg * | Vpmg_ctor (Vpmgp *parms, Vpbe *pbe, int focusFlag, Vpmg *pmgOLD, MGparm *mgparm, PBEparm_calcEnergy energyFlag) |
| Constructor for the Vpmg class (allocates new memory). | |
| int | Vpmg_ctor2 (Vpmg *thee, Vpmgp *parms, Vpbe *pbe, int focusFlag, Vpmg *pmgOLD, MGparm *mgparm, PBEparm_calcEnergy energyFlag) |
| FORTRAN stub constructor for the Vpmg class (uses previously-allocated memory). | |
| void | Vpmg_dtor (Vpmg **thee) |
| Object destructor. | |
| void | Vpmg_dtor2 (Vpmg *thee) |
| FORTRAN stub object destructor. | |
| int | Vpmg_fillco (Vpmg *thee, Vsurf_Meth surfMeth, double splineWin, Vchrg_Meth chargeMeth, int useDielXMap, Vgrid *dielXMap, int useDielYMap, Vgrid *dielYMap, int useDielZMap, Vgrid *dielZMap, int useKappaMap, Vgrid *kappaMap, int useChargeMap, Vgrid *chargeMap) |
| Fill the coefficient arrays prior to solving the equation. | |
| int | Vpmg_solve (Vpmg *thee) |
| Solve the PBE using PMG. | |
| int | Vpmg_solveLaplace (Vpmg *thee) |
| Solve Poisson's equation with a homogeneous Laplacian operator using the solvent dielectric constant. This solution is performed by a sine wave decomposition. | |
| double | Vpmg_energy (Vpmg *thee, int extFlag) |
| Get the total electrostatic energy. | |
| double | Vpmg_qfEnergy (Vpmg *thee, int extFlag) |
| Get the "fixed charge" contribution to the electrostatic energy. | |
| double | Vpmg_qfAtomEnergy (Vpmg *thee, Vatom *atom) |
| Get the per-atom "fixed charge" contribution to the electrostatic energy. | |
| double | Vpmg_qmEnergy (Vpmg *thee, int extFlag) |
| Get the "mobile charge" contribution to the electrostatic energy. | |
| double | Vpmg_dielEnergy (Vpmg *thee, int extFlag) |
| Get the "polarization" contribution to the electrostatic energy. | |
| double | Vpmg_dielGradNorm (Vpmg *thee) |
| Get the integral of the gradient of the dielectric function. | |
| int | Vpmg_force (Vpmg *thee, double *force, int atomID, Vsurf_Meth srfm, Vchrg_Meth chgm) |
| Calculate the total force on the specified atom in units of k_B T/AA. | |
| int | Vpmg_qfForce (Vpmg *thee, double *force, int atomID, Vchrg_Meth chgm) |
| Calculate the "charge-field" force on the specified atom in units of k_B T/AA. | |
| int | Vpmg_dbForce (Vpmg *thee, double *dbForce, int atomID, Vsurf_Meth srfm) |
| Calculate the dielectric boundary forces on the specified atom in units of k_B T/AA. | |
| int | Vpmg_ibForce (Vpmg *thee, double *force, int atomID, Vsurf_Meth srfm) |
| Calculate the osmotic pressure on the specified atom in units of k_B T/AA. | |
| void | Vpmg_setPart (Vpmg *thee, double lowerCorner[3], double upperCorner[3], int bflags[6]) |
| Set partition information which restricts the calculation of observables to a (rectangular) subset of the problem domain. | |
| void | Vpmg_unsetPart (Vpmg *thee) |
| Remove partition restrictions. | |
| int | Vpmg_fillArray (Vpmg *thee, double *vec, Vdata_Type type, double parm, Vhal_PBEType pbetype) |
| Fill the specified array with accessibility values. | |
| VPUBLIC void | Vpmg_fieldSpline4 (Vpmg *thee, int atomID, double field[3]) |
| Computes the field at an atomic center using a stencil based on the first derivative of a 5th order B-spline. | |
| double | Vpmg_qfPermanentMultipoleEnergy (Vpmg *thee, int atomID) |
| Computes the permanent multipole electrostatic hydration energy (the polarization component of the hydration energy currently computed in TINKER). | |
| void | Vpmg_qfPermanentMultipoleForce (Vpmg *thee, int atomID, double force[3], double torque[3]) |
| Computes the q-Phi Force for permanent multipoles based on 5th order B-splines. | |
| void | Vpmg_ibPermanentMultipoleForce (Vpmg *thee, int atomID, double force[3]) |
| Compute the ionic boundary force for permanent multipoles. | |
| void | Vpmg_dbPermanentMultipoleForce (Vpmg *thee, int atomID, double force[3]) |
| Compute the dielectric boundary force for permanent multipoles. | |
| void | Vpmg_qfDirectPolForce (Vpmg *thee, Vgrid *perm, Vgrid *induced, int atomID, double force[3], double torque[3]) |
| q-Phi direct polarization force between permanent multipoles and induced dipoles, which are induced by the sum of the permanent intramolecular field and the permanent reaction field. | |
| void | Vpmg_qfNLDirectPolForce (Vpmg *thee, Vgrid *perm, Vgrid *nlInduced, int atomID, double force[3], double torque[3]) |
| q-Phi direct polarization force between permanent multipoles and non-local induced dipoles based on 5th Order B-Splines. Keep in mind that the "non-local" induced dipooles are just a mathematical quantity that result from differentiation of the AMOEBA polarization energy. | |
| void | Vpmg_ibDirectPolForce (Vpmg *thee, Vgrid *perm, Vgrid *induced, int atomID, double force[3]) |
| Ionic boundary direct polarization force between permanent multipoles and induced dipoles, which are induced by the sum of the permanent intramolecular field and the permanent reaction field. | |
| void | Vpmg_ibNLDirectPolForce (Vpmg *thee, Vgrid *perm, Vgrid *nlInduced, int atomID, double force[3]) |
| Ionic boundary direct polarization force between permanent multipoles and non-local induced dipoles based on 5th order Keep in mind that the "non-local" induced dipooles are just a mathematical quantity that result from differentiation of the AMOEBA polarization energy. | |
| void | Vpmg_dbDirectPolForce (Vpmg *thee, Vgrid *perm, Vgrid *induced, int atomID, double force[3]) |
| Dielectric boundary direct polarization force between permanent multipoles and induced dipoles, which are induced by the sum of the permanent intramolecular field and the permanent reaction field. | |
| void | Vpmg_dbNLDirectPolForce (Vpmg *thee, Vgrid *perm, Vgrid *nlInduced, int atomID, double force[3]) |
| Dielectric bounday direct polarization force between permanent multipoles and non-local induced dipoles. Keep in mind that the "non-local" induced dipooles are just a mathematical quantity that result from differentiation of the AMOEBA polarization energy. | |
| void | Vpmg_qfMutualPolForce (Vpmg *thee, Vgrid *induced, Vgrid *nlInduced, int atomID, double force[3]) |
| Mutual polarization force for induced dipoles based on 5th order B-Splines. This force arises due to self-consistent convergence of the solute induced dipoles and reaction field. | |
| void | Vpmg_ibMutualPolForce (Vpmg *thee, Vgrid *induced, Vgrid *nlInduced, int atomID, double force[3]) |
| Ionic boundary mutual polarization force for induced dipoles based on 5th order B-Splines. This force arises due to self-consistent convergence of the solute induced dipoles and reaction field. | |
| void | Vpmg_dbMutualPolForce (Vpmg *thee, Vgrid *induced, Vgrid *nlInduced, int atomID, double force[3]) |
| Dielectric boundary mutual polarization force for induced dipoles based on 5th order B-Splines. This force arises due to self-consistent convergence of the solute induced dipoles and reaction field. | |
| void | Vpmg_printColComp (Vpmg *thee, char path[72], char title[72], char mxtype[3], int flag) |
| Print out a column-compressed sparse matrix in Harwell-Boeing format. | |
Detailed Description
Contains declarations for class Vpmg.
- Version:
- Id
- vpmg.h 1350 2009-02-12 00:38:48Z yhuang01
- Attention:
